In the Kingdom’s ambitious drive towards Vision 2030, the scale and complexity of pipeline and infrastructure projects are unprecedented. SafeTech, a proud contributor to this national vision, provides the Aramco-approved Side Boom Load Moment Indicator (LMI) system—engineered right here in Saudi Arabia for our unique operational landscape. Our system is the definitive choice for leading construction companies in Riyadh, pipeline contractors in Dammam, and industrial project managers in Jubail and Yanbu seeking to guarantee safety, ensure compliance, and protect their workforce and multi-million Riyal investments.
A Side Boom Safe Load Indicator (LMI) is a critical safety computer that acts as a real-time stability monitoring system. Designed specifically for pipeline side boom tractors, it prevents the primary cause of workplace accidents: tipping from overload or unsafe operating angles. This load moment monitoring device helps prevent catastrophic equipment failure by continuously measuring critical operating parameters and providing instant feedback to the operator, ensuring all lifts remain within the certified load chart limits. It is a fundamental tool for heavy equipment safety management and accident prevention on any job site, from the deserts of the Empty Quarter to the industrial zones of the Eastern Province.
Investing in a certified LMI system is a direct investment in your company’s future, demonstrating a proactive commitment to the highest standards of HSE (Health, Safety, and Environment) that Saudi Arabia demands.
The SafeTech LMI system operates as a central nervous system for your side boom’s lifting operations. Here’s a simplified breakdown of its process:

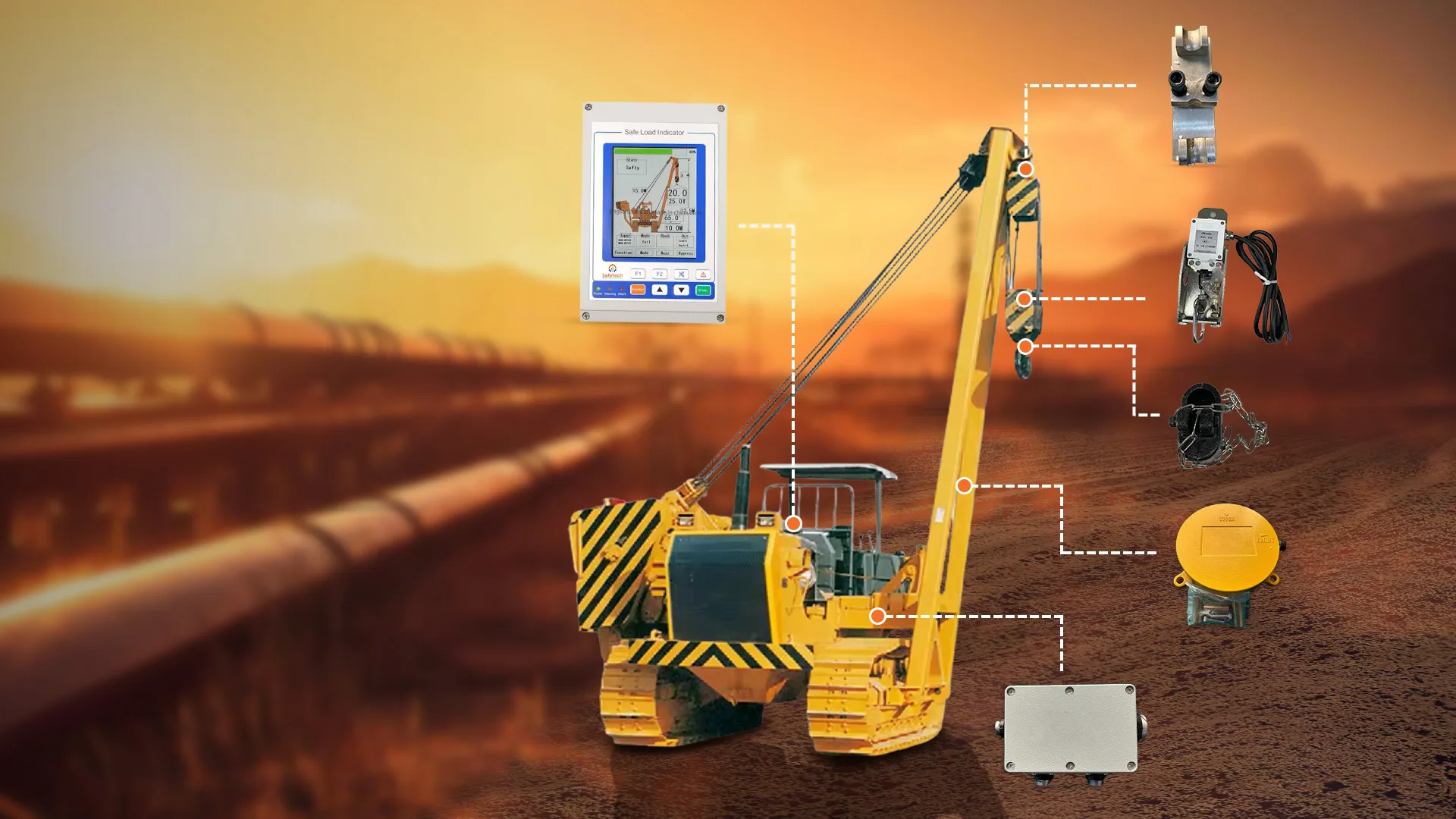

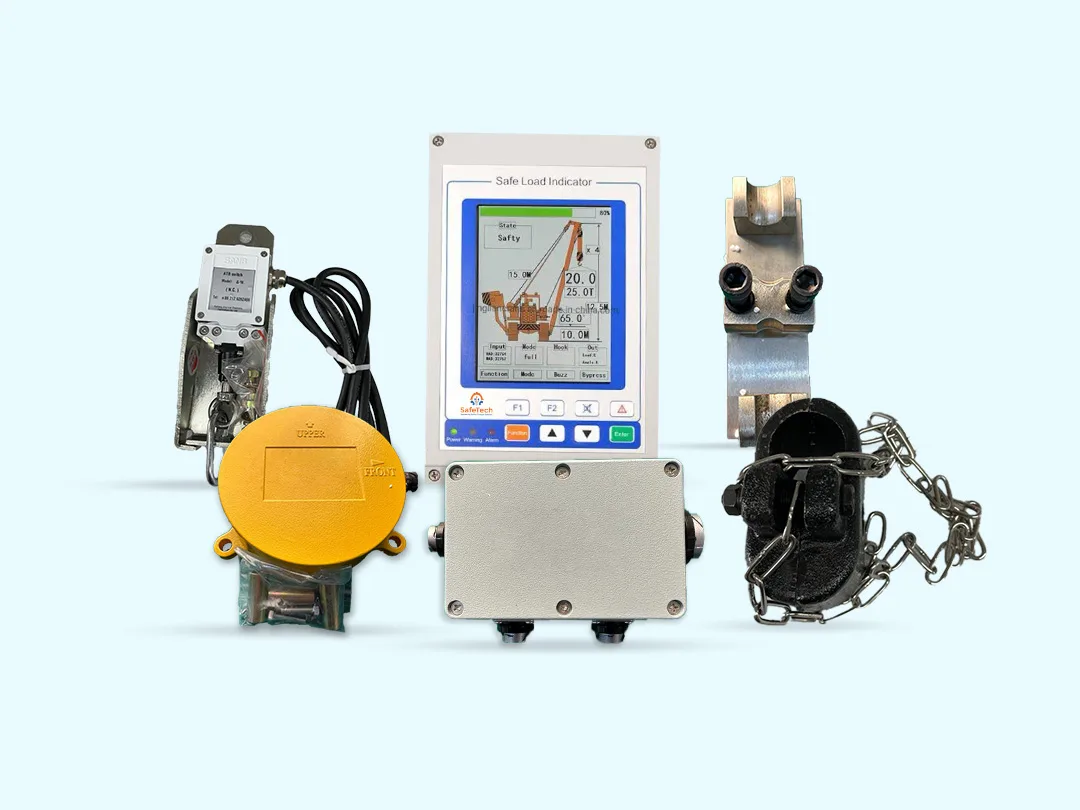

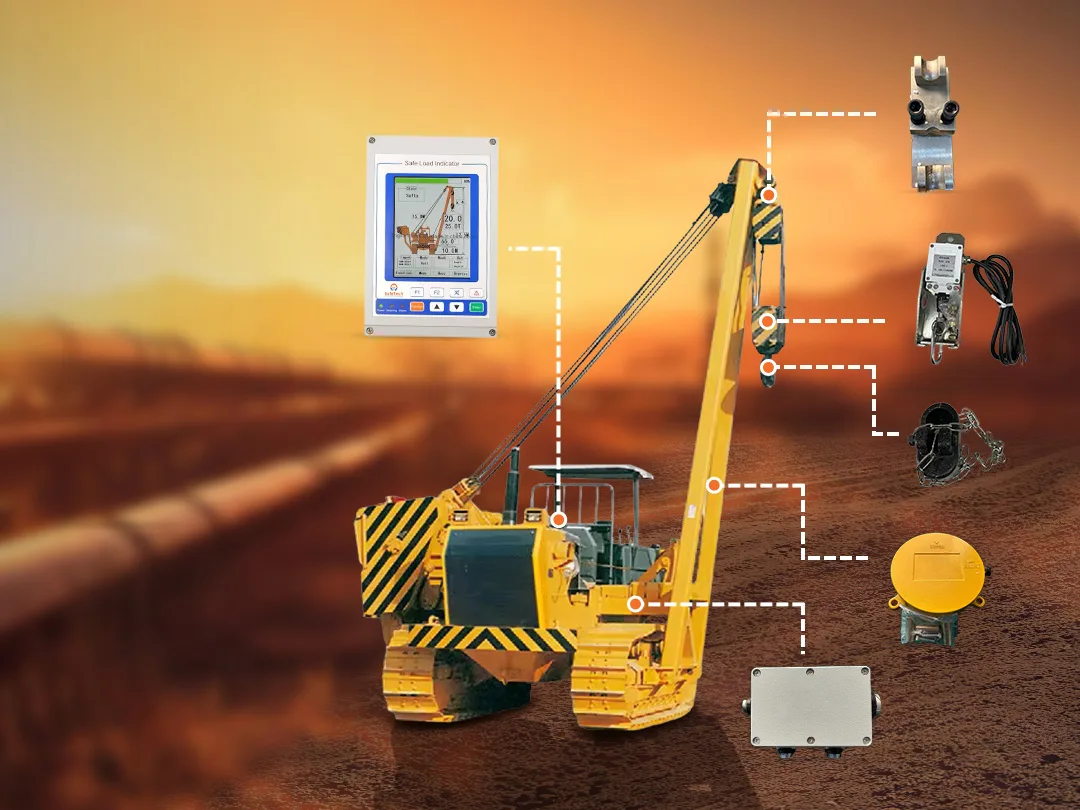

Our system integrates multiple sensors to provide a complete picture of operational safety. This real-time monitoring capability is crucial for preventing side boom instability and ensuring compliance with construction safety regulations enforced across the Kingdom.
| PARAMETER | SENSOR USED | FUNCTION |
|---|---|---|

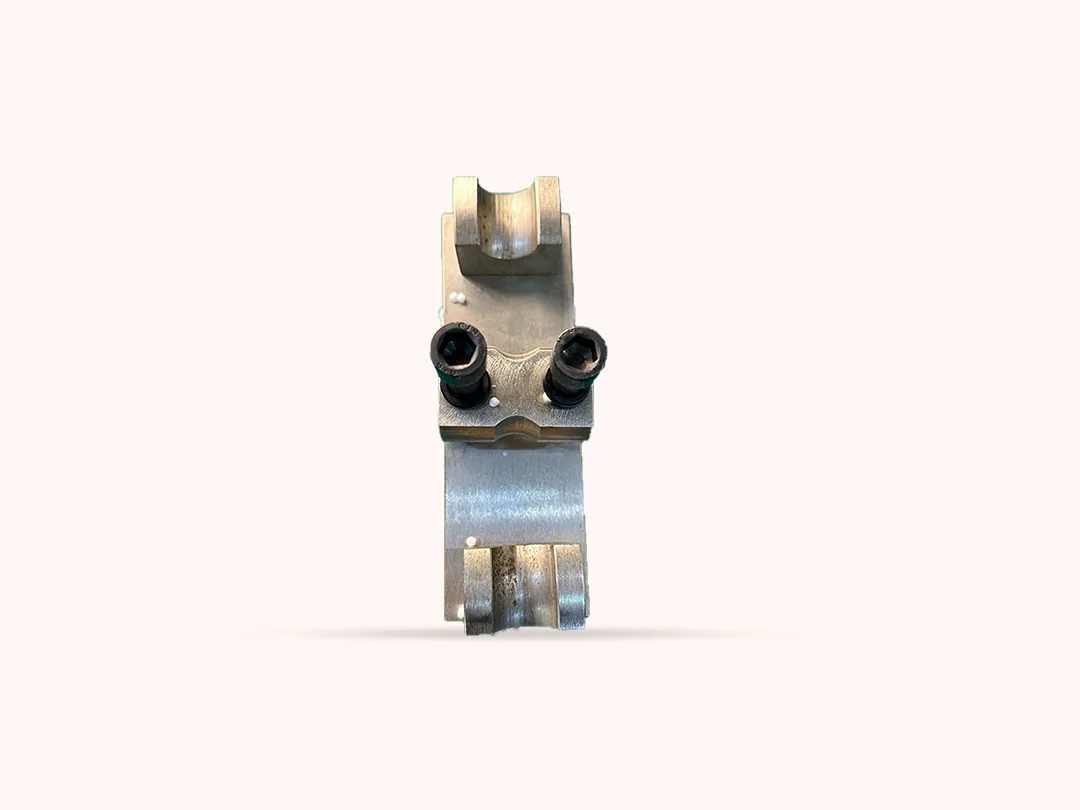

| Lifting Load | Wire Rope Load Sensor | Measures real-time lifting force to prevent overloading and ensure the load is within the rated capacity. |

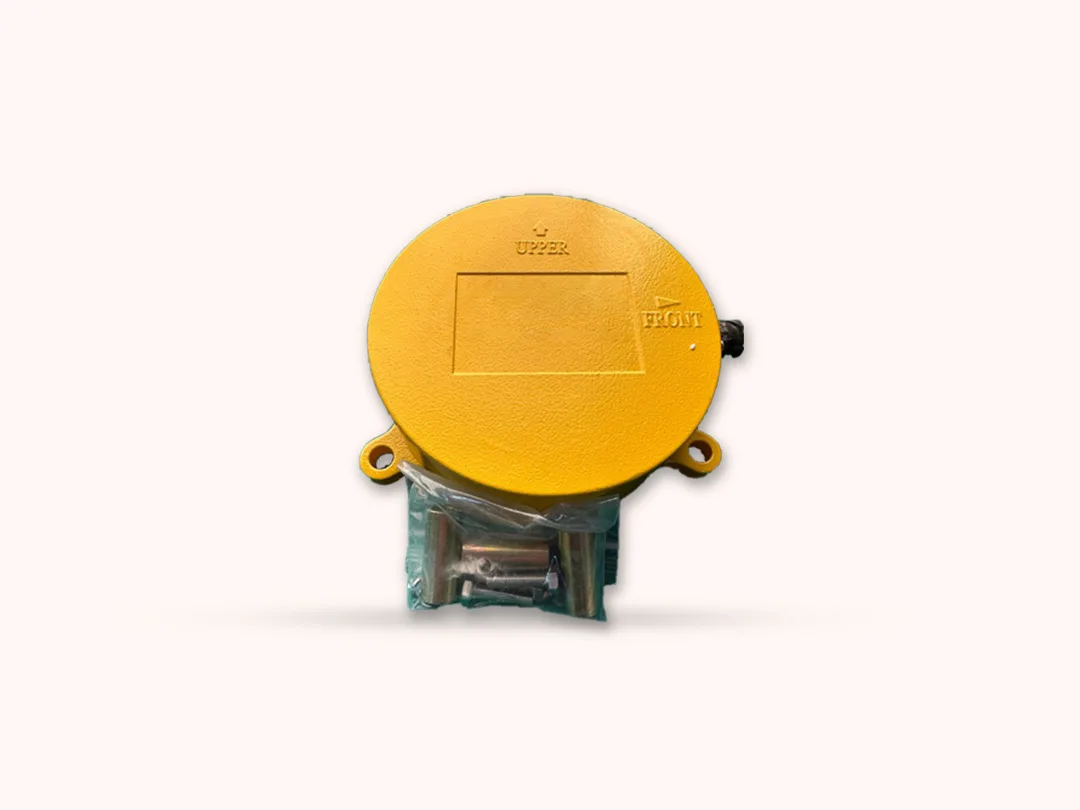

| Boom Angle | MEMS Angle Sensor | Monitors boom inclination to ensure safe operating angles and prevent structural stress on the boom. |
| Machine Tilt | Dual-Axis Slope Sensor | Detects side-to-side and forward-backward tilting of the equipment, crucial for operational safety on uneven ground common in Saudi terrain. |

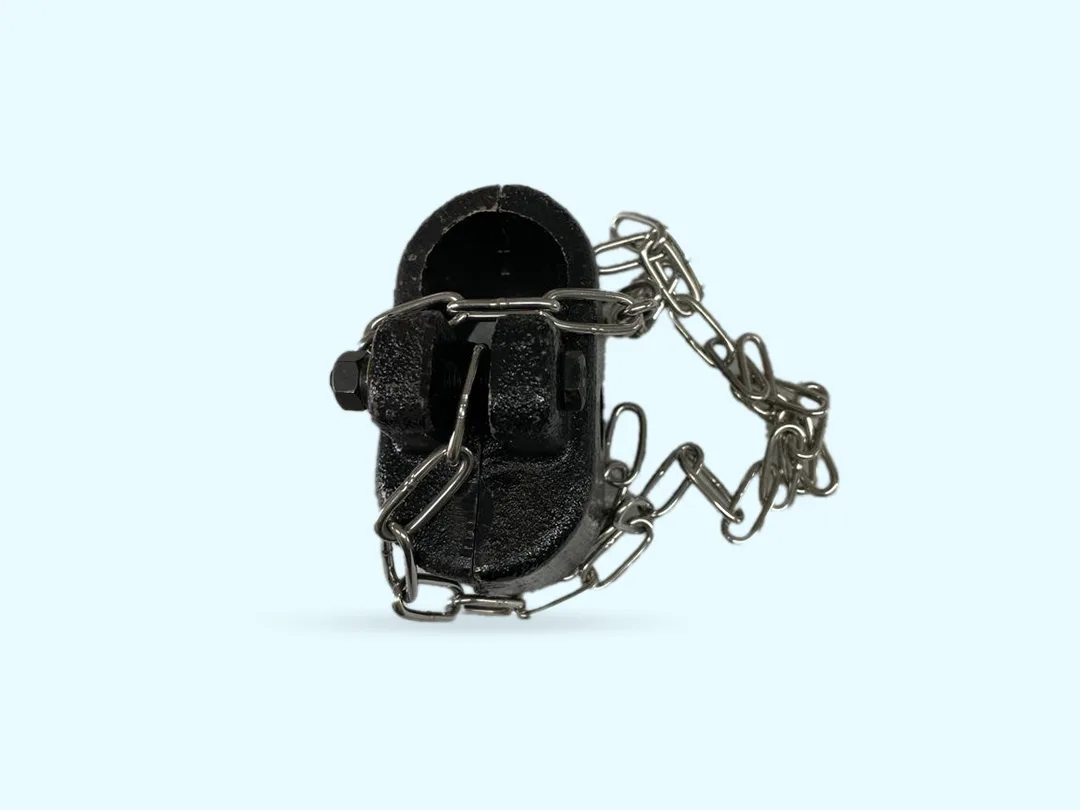

| Boom Collision Risk | Anti-Two-Block (A2B) Switch | Prevents hook block from hitting boom tip during lifting, a key hazard prevention feature. |
Our system is engineered to withstand the harsh environmental conditions of the Kingdom, from the intense heat of the desert to the humid, saline air of the coastal regions.
| COMPONENT | SPECIFICATION |
|---|---|
| Main Controller Unit | High-speed microprocessor; multi-load chart memory; IP69K-rated rugged case |

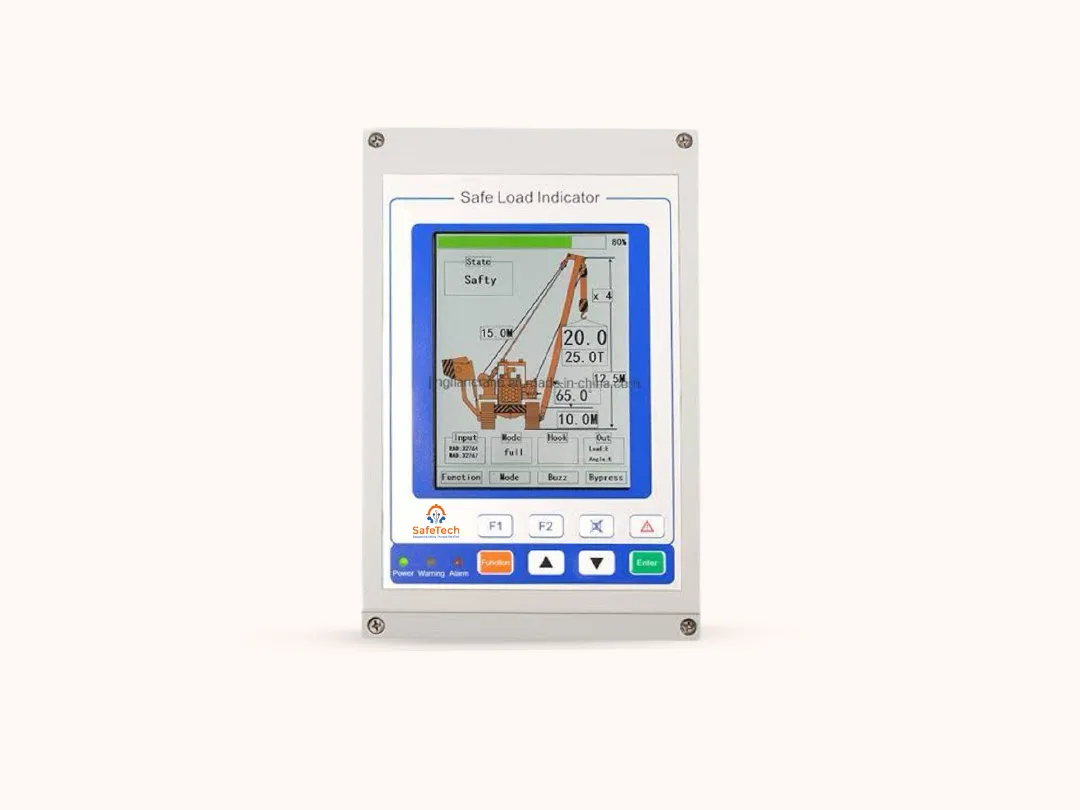

| Display Unit | 7" sunlight-readable touchscreen (1,000+ nits); Arabic/English GUI |
| Operating System | Real-Time OS (RTOS) for instant safety-critical response |
| Data Logging | 8GB–32GB SD card; timestamps for all events, overloads, and alarms |
| SENSOR | SPECIFICATION |
|---|---|
| Load Sensor | Wire Rope Load Sensor / Load Pin (wired) |
| Load Accuracy | ±1% |
| Angle Sensor | MEMS inclinometer; real-time boom angle detection |
| Angle Accuracy | ±0.2° |
| Chassis Slope Sensor | Dual-axis; detects side-to-side & front-to-back tilt |
| PARAMETER | SPECIFICATION |
|---|---|
| IP Rating | IP67 / IP69K (resists desert sand, coastal salt, mud) |
| Operating Temperature | -20°C to +70°C (optimized for Saudi Arabia) |
| Power Supply | 9–36V DC; built-in voltage spike protection |
| Connectors | Industrial Deutsch DT series; shielded cables |
We are not just a supplier; we are your local Saudi partner in safety. Our team of KSA-based certified technicians provides comprehensive support wherever your projects are located.
From the industrial heart of the Eastern Province to the future site of NEOM, our technicians handle every aspect of system integration with precision.
We perform meticulous calibration using certified test weights to guarantee compliance with all local and international standards.
We provide in-depth operator training in Arabic or English, tailored to your team's needs, ensuring they can operate the system with confidence and cultural competence.
Our after-sales support team is located within the Kingdom, offering rapid response times, readily available spare parts, and scheduled maintenance to minimize your downtime.
The SafeTech LMI system is an indispensable tool for any organization involved in heavy lifting and pipeline construction within the Kingdom. It is specifically designed for:
Yes. The SafeTech LMI system is fully certified and meets the stringent safety standards required for use on all Saudi Aramco projects, as well as those by SABIC and the Royal Commission.
Vision 2030 emphasizes safety, efficiency, and local capability. Our system enhances safety on mega-projects, improves operational efficiency, and is supported by a Saudi-based team, contributing directly to the national vision.
Absolutely. All our installation technicians, trainers, and support staff are bilingual (Arabic/English) to ensure clear, effective communication and a seamless experience for your team.
Yes. The system is specifically engineered for the Saudi climate, with an IP69K rating to resist dust, sand, and water, and an operating temperature range of -20°C to +70°C.
We provide a complete suite of documentation, including the Certificate of Conformity, calibration certificates, and the system’s own event data logs, which are invaluable for HSE audits and incident investigations.
With our team of technicians based across Saudi Arabia, we offer one of the fastest response times in the industry. We can typically be on-site within days of a request, minimizing any disruption to your project schedule.
Don’t let safety be the weak link in your operations. Join the leading Saudi businesses who trust SafeTech to protect their people, their assets, and their reputation. Contact our Dammam-based team today for a personalized consultation and discover how we can help you achieve unparalleled safety and compliance on your next project.
